BP
W1 Basic

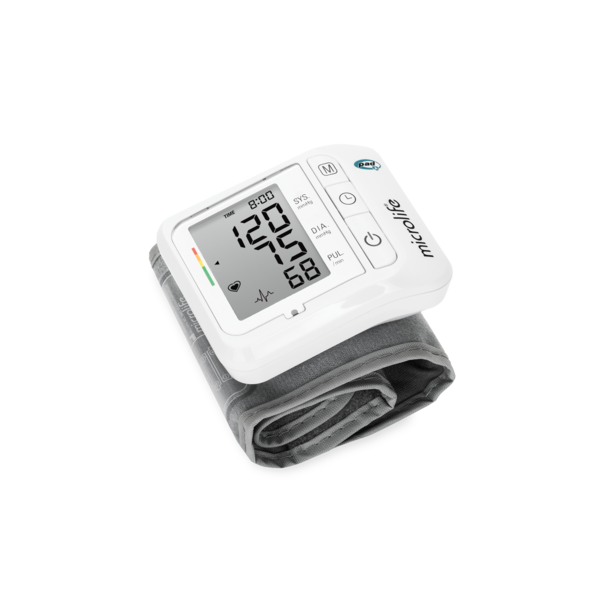

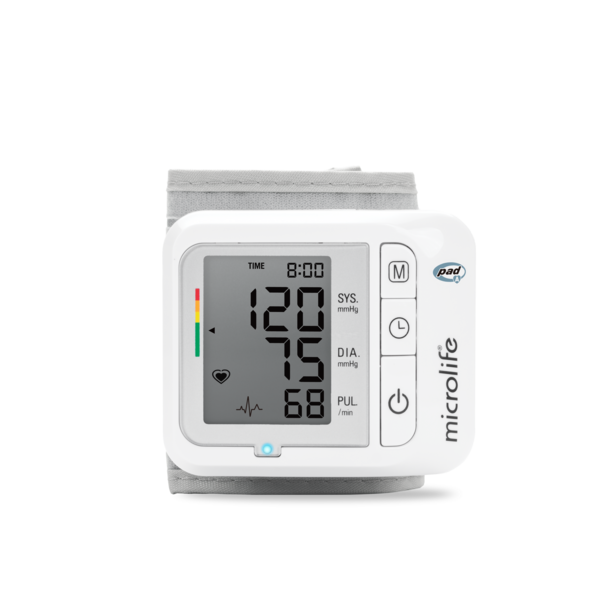

Wrist blood pressure monitor with PAD technology
Features
The Microlife W1 Basic is an automatic wrist blood pressure monitor with LED positioning indicator, which helps the patient to find the correct wrist position for an accurate blood pressure reading. Moreover, it is equipped with PAD technology for the early recognition of heart arrhythmias and records up to 60 measurement values.
Instruction manual BP W1 Basic
PDF, (8.5 MB)
What is PAD?
The PAD technology (Pulse Arrhythmia Detection) detects irregular heart beats during blood pressure measurements.
If an irregular heart beat occurs during the measurement, the PAD symbol is displayed.
learn moreSpecifications
- LED arm position indicator
- PAD technology
- Gentle+
- 60 Data memory
- Traffic light indicator
- Adjustable date and time
- Cuff check indicator
- Arm movement indicator
- Low battery indication
- Rechargeable battery-friendly
- Equipped with storage box, 2xAAA alkaline batteries and BP diary
- Model no.: BP W1 Basic
- Dimensions: 73 x 66 x 38 mm
- Weight: 124g (with batteries)
- Voltage source:
2 x 1.5 V alkaline batteries; size AAA - Measuring range:
20 - 280 mmHg (blood pressure)
40 - 200 beats per minute (pulse)
